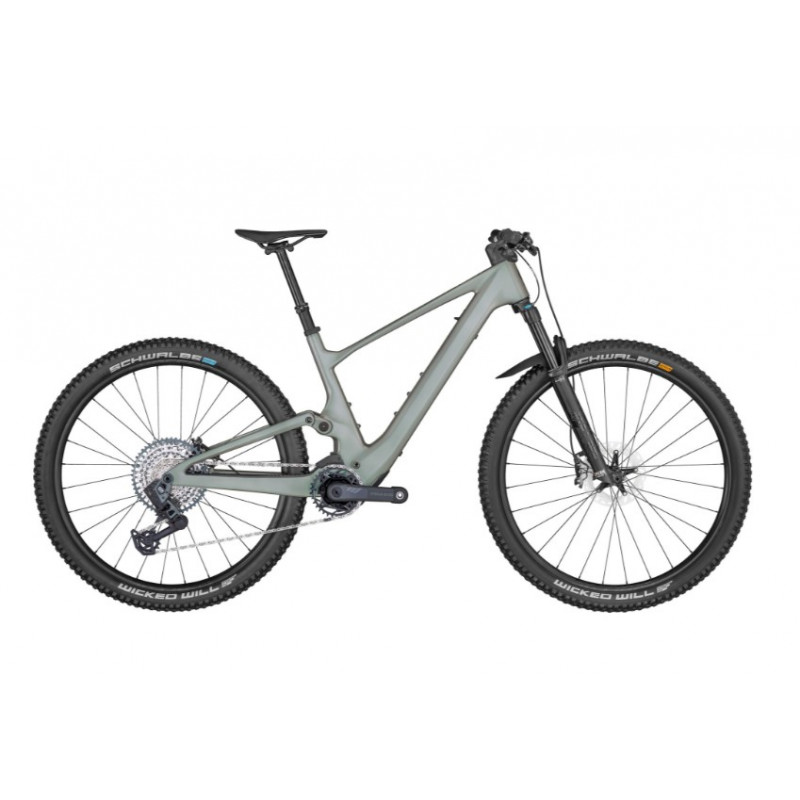

SCOTT Lumen eRIDE 900 TR

Rahmen

• Carbon HMX
• Integrated Suspension Technology
• Flex Pivot / Adjustable head angle
• Syncros Cable Integration System
• TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline

Federweg

• Front: 130mm
• Rear: 130mm

Gabel

• FOX 34 Float Performance Elite Air FIT4
• 3-Modes with low Speed adj. / Kabolt 15x110mm axle
• 44mm offset / tapered steerer / Reb. Adj. / Lockout
• 130mm travel

Dämpfer

• FOX NUDE 5T EVOL Trunnion
• SCOTT custom w. travel / geo adj.
• 3 modes: Lockout-Traction Control-Descend
• Custom large Air volume / DPS / Reb. Adj.
• Travel 130-90-Lockout / T165X45mm

Lenker-Fernbedienung

• SCOTT TwinLoc 2 Technology
• Suspension & Dropper Remote
• 3 Suspension modes

Antriebseinheit

• TQ HPR50 Mid Motor drive 50Nm max Torque
• EU: 25kmh / US: 20mph

Batterie

• TQ Internal 360Wh

Display

• TQ HPR
• Bluetooth / ANT+ / Dedicated Smartphone app

Ladegerät

• TQ 100-240V-4A

Schaltung

• Schaltwerk: SRAM GX Eagle AXS Transmission 12 Speed / Wireless Electronic Shift System
• Schalthebel: SRAM GX Eagle AXS Rocker Controller
• Kurbelsatz: FSA Carbon crankset / 175mm / 34T
• Kettenführung: e*thirteen / e*spec Slider
• Kettenblatt: Scott custom spider / SRAM Eagle Transmission 34T chainring
• Kette: SRAM CN GX Eagle Transmission
• Kassette: SRAM GX Eagle XS 1275 Transmission 10-52

Bremsen

• Shimano XT / BR-M8120 4 Piston
• Bremsscheibe:
  • Front: RT-MT800 CL 180mm
  • Rear: RT-EM810 CL 180mm

Lenker

• Syncros Fraser iC SL DC Carbon
• 0° rise / back sweep 8° / mini Rise / 760mm
• Syncros Performance XC lock-on grips

Sattelstütze

• FOX Transfer Dropper Post
• 31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 175mm

Sattel

• Syncros Tofino 1.5 Regular / Titanium rails

Steuersatz

• Syncros - Acros Angle adjust & Cable Routing HS System
• Stainless / +-0.6° head angle adjustment
• ZS56/28.6 – ZS56/40 MTB

Laufradsatz

• Syncros Silverton 1.5-30 CL
• F: 15x110mm / R: 12x148mm
• 30mm Tubeless ready rim 28H / XD Driver
• Syncros Axle w/Removable Lever with 6mm Allen / T30 and T25 Tools

Reifen

• Vorne: Schwalbe Wicked Will 29x2.4" EVO / Super Race / TLE / 67EPI / Addix Speed Soft
• Hinten: Schwalbe Wicked Will 29x2.4" EVO / Super Race / TLE / 67EPI / Addix Speed Grip

Extras

• SRAM AXS Powerpack
• Syncros Fork Fender

Zubehör

• Syncros Eco Sealant
• Transport Axle

Gewicht

• Ca. 16.3 kg (Tubeless setup)
• Ca. 35.94 lbs (Tubeless setup)

Max. Systemgewicht

• 128 kg
• Das Gesamtgewicht umfasst das Bike, den Fahrer, die Ausrüstung und eventuelles weiteres Gepäck.
